A three-storey mixed-use project on Victoria Street hit an unexpected layer of loose silty sand at four metres—right where the footing was supposed to sit. The geotechnical report flagged it early, thanks to a well-executed SPT program. In Prince George, where the subsurface swings from dense glacial till on the plateau to soft alluvial deposits along the Nechako and Fraser Rivers, guessing is expensive. The Standard Penetration Test (SPT) remains the most widely used in-situ method to cut through that guesswork. It gives contractors and structural engineers a direct measurement of soil resistance, sample recovery, and groundwater conditions, all in one operation. The city’s location at the confluence of two major rivers, combined with a history of glaciation, creates a patchwork of soil profiles that can change within a single block. A consistent SPT program, run by drillers who understand the local geology, turns that variability into usable numbers for bearing capacity, settlement, and seismic site class. For projects that push deeper into the silts near the BCR Industrial Site or the sands of the Hart Highlands, pairing SPT data with CPT soundings often resolves stratigraphic questions that cores alone cannot.
An SPT N-value is not just a number on a log—it is a direct index of the energy required to drive a sampler through Prince George's complex glacial and fluvial deposits.
Methodology applied in Prince George
Typical technical challenges in Prince George
BC Building Code 2024 Section 4.2 mandates a site investigation sufficient to characterize ground conditions for the proposed structure. In Prince George, the seismic hazard is real—the city sits in a moderate seismicity zone, and the fine-grained soils along the Nechako River are candidates for liquefaction under the right ground motions. Skipping or minimizing SPT borings puts the engineer in a position where they cannot reliably assign a Site Class per Table 4.1.8.4.A, which affects the design spectral accelerations and can add unnecessary steel and concrete costs. Loose saturated sands with N-values below 15 in the upper 10 metres demand a liquefaction assessment, typically using the Youd & Idriss (2001) procedure. If the triggering analysis indicates potential instability, the project may require ground improvement—a cost that should be identified during design, not after excavation reveals flowing sand. The risk extends beyond seismic performance: undetected soft zones lead to differential settlement that cracks partition walls and binds doors. A proper SPT investigation distributes borings to capture lateral variability, especially where fill of unknown origin overlies natural deposits near old mill sites or former river channels.
Our services
Every SPT program in Prince George is tailored to the project scale and the specific challenges of the local geology. The following services represent the most common configurations our technical team delivers across the region.
Standard SPT Borehole Program with Soil Logging

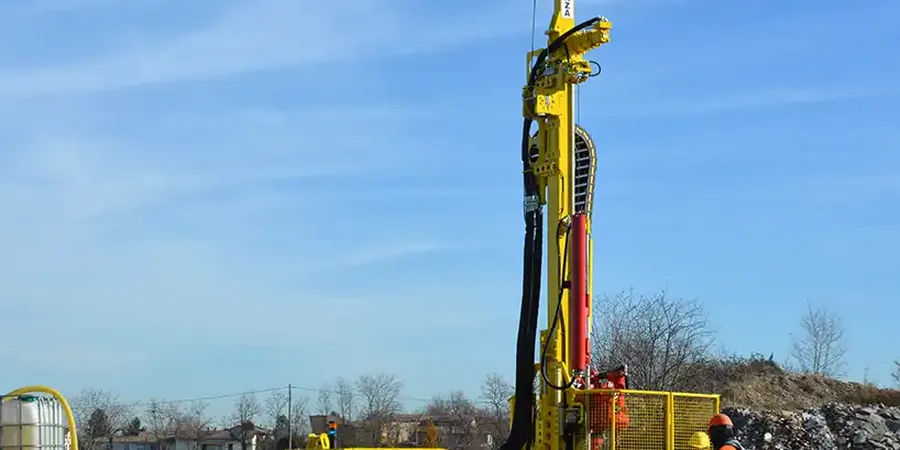

A full field program with truck-mounted or track-mounted drill rigs, advancing boreholes to the depth required by the structural engineer. Each SPT interval is logged for soil classification (Unified Soil Classification System), moisture, consistency, and color. Samples are preserved in sealed jars for laboratory index testing. The final report includes corrected N60 values, groundwater observations, and preliminary bearing capacity estimates.
SPT-Based Liquefaction Screening for BC Building Code Compliance
Focused investigation targeting saturated granular layers beneath the water table. We execute closely spaced SPTs and apply the NCEER/Youd-Idriss simplified procedure to calculate factor of safety against liquefaction at multiple depths. Results are presented with depth plots showing cyclic resistance ratio (CRR) versus cyclic stress ratio (CSR), supporting the geotechnical engineer's site classification and any required ground improvement design.
Frequently asked questions
How deep do SPT borings typically go for a commercial building in Prince George?
The depth depends on the foundation type and the soil profile, but most commercial projects in Prince George require borings between 10 m and 20 m. The BC Building Code requires investigation to a depth where the stress increase from the foundation is less than 10% of the existing overburden pressure. In the Bowl, where soft silts extend deeper, borings often reach the underlying till; up on the plateau, refusal in dense till may occur shallower. The responsible geotechnical engineer determines the final depth based on the anticipated loads and the stratification encountered during drilling.
What does an SPT test cost for a typical residential lot in the Prince George area?
For a standard single-family residential lot, a single SPT boring with basic logging and a summary memo typically falls in the range of CA$670 to CA$950, depending on access, depth, and the number of SPT intervals required. If multiple borings or additional laboratory testing such as grain size analysis or Atterberg limits are needed, the scope and cost adjust accordingly. We provide a fixed-price proposal after reviewing the site address and the building plans.
Can SPT be performed in winter conditions in Prince George?
Yes, SPT drilling can proceed through the Prince George winter, provided the rig can access the site and the surface is prepared. Frozen ground in the upper metre requires a casing advance or pre-drilling, but once the borehole passes the frost line, the test proceeds normally. Snow cover and cold temperatures do not affect the SPT blow count, though the crew must manage hydraulic fluid viscosity and sample handling to prevent freezing of saturated specimens. Winter work often allows faster permitting because the ground disturbance is minimized when the surface is frozen.
How do you correct SPT N-values for gravelly soils common in the Prince George uplands?
Gravelly soils can produce elevated blow counts due to particle interlock, and the split-spoon sampler may encounter refusal on larger cobbles. Our procedure corrects raw N-values to N60 using the hammer energy ratio measured with an instrumented drill rod per ASTM D4633. For gravel-rich intervals, we apply a correction factor for the influence of larger particles when gravel content exceeds 30%, following the recommendations of Seed et al. (1985). Where refusal occurs, we log the depth and switch to a core barrel or record the SPT refusal as practical guidance for the foundation designer.
